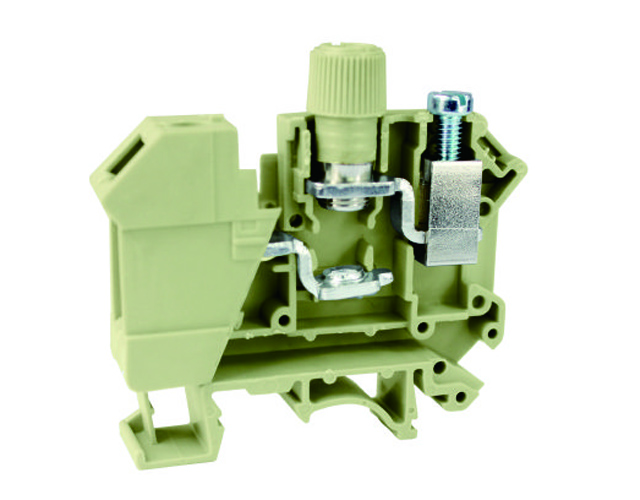

UPUN 281008 Клемма винтовая USK-4/2×2

<p>Клеммный блок с винтовым зажимом, номинальное напряжение: 500 В, макс. рабочий ток: 32 А, метод подключения: винтовое соединение, количество соединений: 4, диапазон обжима: 0,5 мм²-4 мм², AWG: 20-12, толщина: 6 мм, высота: 56 мм, цвет: бежевый, тип монтажа: TH35-7,5. TH35-15, G32-15, G32-18</p><br><div class="_20200320 _techParams"> <div class="table_resp"> <table class="table_ex_1 table_border big_top_bord" width="100%" ><tr class="border_bot"><td class="color_gray_2" width="50%">Packing unit (PCS)</td><td>100</td> </tr><tr class="border_bot"><td class="color_gray_2" width="50%">NW per piece(g)</td><td>13.85</td> </tr><tr class="border_bot"><td class="color_gray_2" width="50%">Layers</td><td>2</td> </tr><tr class="border_bot"><td class="color_gray_2" width="50%">Number of connections </td><td>4</td> </tr><tr class="border_bot"><td class="color_gray_2" width="50%">Rated cross section(mm²)</td><td>4</td> </tr><tr class="border_bot"><td class="color_gray_2" width="50%">Color</td><td>Beige</td> </tr><tr class="border_bot"><td class="color_gray_2" width="50%">Insulation material</td><td>PA</td> </tr><tr class="border_bot"><td class="color_gray_2" width="50%">Flame retardant grade （UL94）</td><td>V0</td> </tr><tr class="border_bot"><td class="color_gray_2" width="50%">Rated voltage(V)</td><td>500</td> </tr><tr class="border_bot"><td class="color_gray_2" width="50%">Rated current(A)</td><td>32</td> </tr><tr class="border_bot"><td class="color_gray_2" width="50%">Temperature of insulation material</td><td>-40℃～+125℃</td> </tr><tr class="border_bot"><td class="color_gray_2" width="50%">Wire feed</td><td>Terminal side</td> </tr><tr class="border_bot"><td class="color_gray_2" width="50%">Connection Method</td><td>Screw connection</td> </tr><tr class="border_bot"><td class="color_gray_2" width="50%">Screw thread</td><td>M3</td> </tr><tr class="border_bot"><td class="color_gray_2" width="50%">Stripping length(mm)</td><td>10</td> </tr><tr class="border_bot"><td class="color_gray_2" width="50%">Tightening torque</td><td>0.5-1.0</td> </tr><tr class="border_bot"><td class="color_gray_2" width="50%">Solid conductors(mm²)</td><td>0.5-4</td> </tr><tr class="border_bot"><td class="color_gray_2" width="50%">Solid conductors AWG</td><td>20-12</td> </tr><tr class="border_bot"><td class="color_gray_2" width="50%">Stranded conductors(mm²)</td><td>1.5-4</td> </tr><tr class="border_bot"><td class="color_gray_2" width="50%">Stranded conductors AWG</td><td>20-12</td> </tr><tr class="border_bot"><td class="color_gray_2" width="50%">Operating temperature（℃）</td><td>-40℃～+105℃</td> </tr><tr class="border_bot"><td class="color_gray_2" width="50%">Ambient temperature (storage/transportation)（℃）</td><td>-25℃～+60℃</td> </tr><tr class="border_bot"><td class="color_gray_2" width="50%">Relative humidity</td><td>30％～90％</td> </tr><tr class="border_bot"><td class="color_gray_2" width="50%">Connection in acc. with standard</td><td>IEC 60947-7-1</td> </tr></table></div></div>
